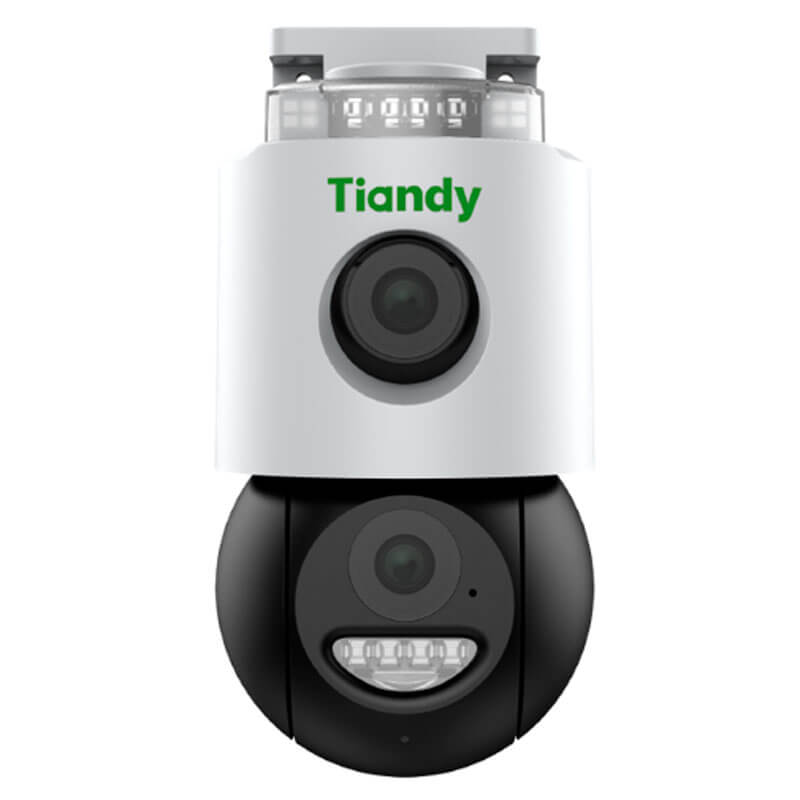

6-3 мегапиксельная WIFI-PT камера видеонаблюдения
- Разрешение 6-3 МП 1/3" CMOS
- Панорама 81,3гр PT 81,3гр
- Встроенный микрофон и динамик
- Объектив Панорама 4мм PT 4мм
- Мин. световая чувствительность: Люкс 0.02
- Автослежение
- Wi-Fi IEEE802.11b/ 802.11g/802.11n
- Кодек сжатия S+265/H.265(HP)/S+264/H.264(HP, MP, BP)
- Smart ИК 50м и LED 15м
- Улучшения BLC/HLC/Антитуман/3D DNR
- Совместимость ONVIF (PROFILE S/T/G), SDK, RTSP
| Camera | |
| Image Sensor | 1/3"CMOS |
| Min. Illumination | Color:0.02Lux@(F1.6,AGC ON),B/W:0Lux with IR |
| Shutter Time | 1s~1/100000s |
| Day&Night | IR-cut filter with auto switch (ICR) |
| WDR | DWDR |
| S/N | >40dB |
| Angle Adjustment | (P)Fixde Lens: -60°~60°, Pan & Tilt Lens: 0~345°; |
| (T)Fixde Lens: 5°-15°, Pan & Tilt Lens: -15~90°; | |
| (R)Fixde Lens: 0°, Pan & Tilt Lens: 0° | |
| Lens | |
| Lens Type | Fixed |
| Focal Length | 4mm/4mm |
| Lens Mount | M12/M12 |
| Aperture Range | F1.6/F1.6,fixed focal lens |
| Field of View | (H)Fixde Lens:81.3°; Pan & Tilt Lens:81.3° |
| (V)Fixde Lens:44.4°; Pan & Tilt Lens:44.4° | |
| (D)Fixde Lens:94.4°; Pan & Tilt Lens:94.4° | |
| DORI Distance | Fixde Lens:Detect: 59.26m; Observe:23.52m; Recognize:11.85m; Identify:5.93m |
| Pan & Tilt Lens:Detect: 59.26m; Observe:23.52m; Recognize:11.85m; Identify:5.93m | |
| Illuminator | |
| IR LEDs | 4+4 |
| IR Distance | 30m |
| Wavelength | 850nm |
| White LEDs | 4+4 |
| Whitelight Distance | 15m |
| Compression Standard | |
| Video Compression | S+265/H.265/H.264B/H.264M/H.264H |
| Video Bit Rate | Fixde Lens:32k~4Mbps |
| Pan & Tilt Lens:32k~4Mbps | |
| Audio Compression | G.711A/G.711U |
| Audio Sampling Rate | 8kHz/16kHz |
| Image | |
| Max. Resolution | 2304x1296@15fps |
| Main Stream | Fixde Lens |
| PAL:15fps(2304x1296,1920x1080,1280x720,640x480,704x576) | |
| NTSC:15fps(2304x1296,1920x1080,1280x720,640x480,704x480) | |
| Pan & Tilt Lens: | |
| PAL:15fps(2304x1296,1920x1080,1280x720,640x480,704x576) | |
| NTSC:15fps(2304x1296,1920x1080,1280x720,640x480,704x480) | |
| Sub Stream | Fixde Lens: |
| PAL:15fps(704x576,704x288,640x360,352x288) | |
| NTSC:15fps(704x480,704x240,640x360,352x240) | |
| Pan & Tilt Lens: | |
| PAL:15fps(704x576,704x288,640x360,352x288) | |
| NTSC:15fps(704x480,704x240,640x360,352x240) | |
| Third Stream | N/A |
| BLC | Yes |
| HLC | Yes |
| AGC | Yes |
| 3D DNR | Yes |
| White Balance | Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock White Balance |
| ROI | N/A |
| Corridor mode | N/A |
| EIS | N/A |
| OSD | Overlay of additional characters in one area, 1 line, up to 48 characters or 16 Chinese characters;16*16/32*32/48*48 |
| Picture Overlay | N/A |
| Privacy Mask | 4 black static areas |
| Defog | Yes |
| Feature | |
| Alarm Trigger | Voltage Alarm;Disk Full;Disk R/W Error;IP Address Conflict |
| Video Analytics | N/A |
| Rules of behavior analyse in 1 scene | N/A |
| Early Warning(EW) | N/A |
| Auto-Tracking | Auto-Tracking |
| Face Mode | N/A |
| Face Detection Performance | N/A |
| Linkage Method | trigger sound;trigger recording;trigger capture;notify surveillance center |
| Network | |
| ANR | Yes |
| Protocols | HTTP;TCP/IP;UDP;ICMP;DHCP;DNS;NTP;IPv4;SSH;Unicast;FTP |
| System Compatibility | P2P;CGI |
| Remote Connection | ≤2 |
| Client | Easy7 Smart Client |
| Moblie Client | EasyLive Plus |
| Web | IE10+;Firefox52+;Edge89+;Safari11+;Chrome57+ |
| Interface | |
| Communication Interface | 1*RJ-45,10/100 Mbps self-adaptive Ethernet port |
| Audio I/O | N/A |
| Alarm I/O | N/A |
| Built-In Mic | Yes |
| Built-In Speaker | Yes |
| Reset Button | Yes |
| On-board storage | Support microSD/microSDHC/microSDXC card, up to 512 GB |
| Additional interfaces | N/A |
| General | |
| Web Client Language | 3languages |
| Simple Chinese/English/Vietnamese | |
| Operating Temperature | -30℃~60℃ |
| Operating Humidity | Humidity 95% or less (no condensation) |
| Storage Temperature | -30℃~60℃ |
| Storage Humidity | Humidity 95% or less (no condensation) |
| Power Supply | DC12V±25% |
| Protection | Surge2000V;ESD6000V;IP66 |
| Boundary Dimensions | 133(L)102W)209(H)mm |
| Package Dimensions | 160(L)160(W)205(H)mm |
| GrossWeight | 0.83kg |
| NetWeight | 0.6kg |
Тип корпуса:
Купольная
Разрешение:
3Mп, 6Мп
Класс защиты:
IP 67
Опции:
WiFi, Встроенный микрофон, SD карта памяти, Динамик
ИК подсветка:
30 м.
