DH-SD2A400HB-GN-AGQ-PV-SP-EAU


4G
Производитель: Dahua
3 063 000 сум
Количество:

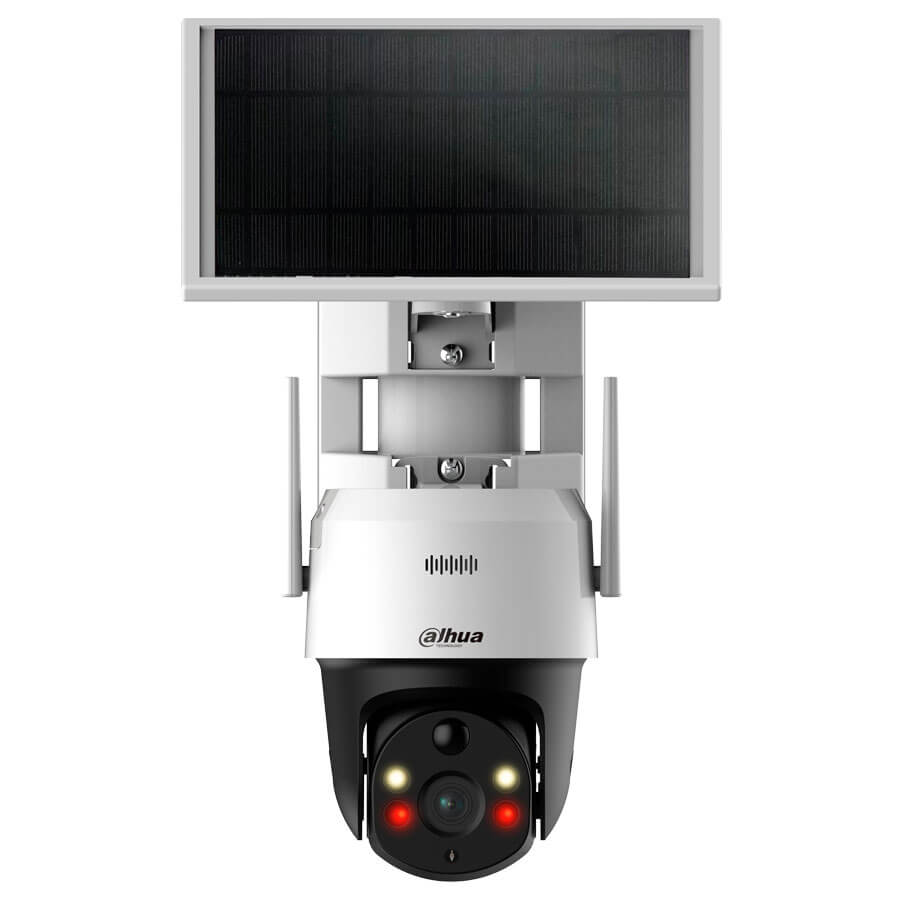

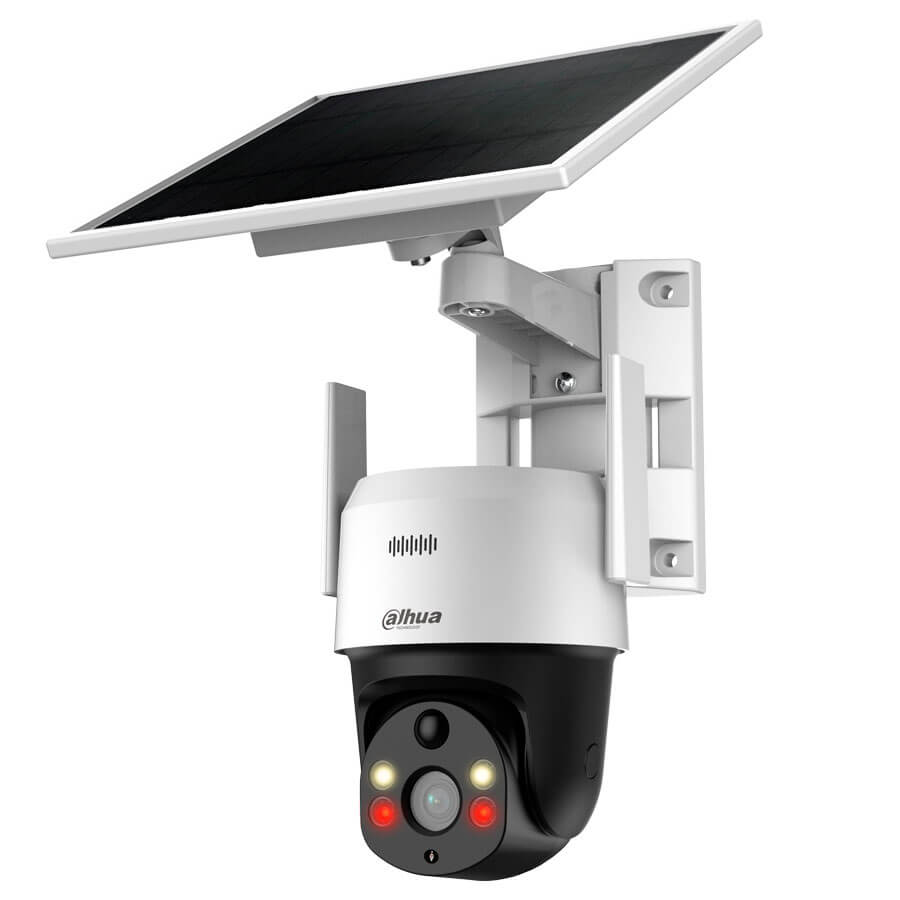

4-мегапиксельная 4G-солнечная сетевая камера PT

  • Поддерживает питание от солнечной энергии, что делает его идеальным для использования в местах, где затруднен доступ к электричеству и сетям.
    4-мегапиксельная 1/2,8-дюймовая КМОП-матрица, низкая яркость и высокое разрешение
  • Кодек H.265, поддерживающий высокую степень сжатия и сверхнизкую скорость передачи данных.
  • Встроенный теплый свет и ИК-светодиод.
  • Связь звуковой и световой сигнализации. При срабатывании сигнализации звук и свет будут связаны.
  • Встроенный высокопроизводительный модуль 4G, подходящий для всех мобильных сетей.
  • Встроенный ИК-датчик позволяет камере быстро отслеживать и контролировать цели.
  • Поддерживает двустороннюю связь.
  • Поддерживает карты памяти Micro SD объемом до 512 ГБ.
Camera
Image Sensor 1/2.8" CMOS
Pixel 4 MP
Max. Resolution 2560 (H) × 1440 (V)
ROM 128 MB
RAM 256 MB
Electronic Shutter Speed 1/3s–1/30,000s
Scanning System Progressive
Min. Illumination Color: 0.05 lux@F1.6
B/W: 0.005 lux@F1.6
0 lux@F1.6 (Illuminator on)
Illumination Distance 30 m (98.43 ft) (IR)
30 m (98.43 ft) (white light)
Illuminator On/Off Control Manual; Smart IR; Off
Illuminator Number 2 (IR)
2 (white light)
PIR Sensor Distance 10 m (the height of device is 2.2 m, placed horizontally,+25°C,+77°F)
7m (the height of the device is 2.2 m, placed at an angle of 15° from the horizontal,+25°C,+77°F)
Battery
Battery Type Lithium-ion
Capacity 10 Ah
Max. Charging Voltage 4.2 V
Operating Temperature 0 °C to +50 °C (+32 °F to +122 °F)
Battery Voltage 3.6 V
Cycle Lifetime Sleep Mode:7 days (at the rate of 1-hour remote live view per day)
Battery Life More than 500 cycles
Battery Weight Approx. 192 g (0.42 lb)
Solar Module
Maximum Power 5.5 W
Cell type Monocrystalline
Operating Temperature –40 °C to +80 °C (–40 °F to +176 °F)
Dimensions 224 mm × 195 mm × 44 mm (8.8" × 5.9" × 1.7") (L × W × H)
Standard testing condition AM = 1.5, 25 °C (77 °F), 1000 W/m², SMQ + 12%
Lens
Focal Length 4mm
Max. Aperture F1.6
Field of View H: 84°
V: 42°
D: 101°
Close Focus Distance 2 m (6.56 ft)
Iris Control Fixed Iris
DORI Distance Detect Observe Recognize Identify
86 m 34.4 m 17.2 m 8.6 m
(282.15 ft) (112.86 ft) (56.43 ft) (28.22 ft)
PTZ
Pan/Tilt Range Pan: 0° to 345°
Tilt: 0° to +80°
Manual Control Speed Pan: 0.1°/s–74°/s
Tilt: 0.1°/s–36.4°/s
Preset Speed Pan: 74°/s;
Tilt: 36.4°/s
Preset 300
Power-off Memory Yes
Idle Motion Preset
Active Deterrence
Light Warning White light warning
Flash duration: 5 s–30 s
Flash frequency: High, medium, low
Sound Warning 1 sound warning alarm
The alarm can be configured to go off 1-3 times
Video
Video Compression H.265; H.264; H.264B; H.264H; MJPEG(Sub Stream)
Streaming Capability 2 streams
Resolution 4M (2560 × 1440); 1080p (1920 × 1080); 1.3M(1280 × 960); 720p (1280×720); D1 (704 × 576); CIF (352 × 288); VGA (640 × 480)
Video Frame Rate Main stream: 4M/1080p/1.3M/720p @ (1–25/30 fps)
Sub stream 1: D1/CIF/VGA@ (1–25/30 fps)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 512 kbps–8192 kbps
H.265: 204 kbps–7936 kbps
Day/Night Auto (ICR)
BLC Yes
WDR DWDR
HLC Yes
White Balance Auto; indoor; outdoor; ATW; manual; sodium lamp; natural light; street lamp
Gain Control Auto; manual
Noise Reduction 2D NR; 3D NR
Motion Detection Yes
Region of Interest (RoI) Yes
Defog Electronic
Image Rotation 180°
S/N Ratio ≥ 55 dB
Audio
Audio Compression G.711a; G.711Mu
Network
Network Port RJ-45 (10/100 Base-T)
4G Yes
Frequency Band LTE-FDD: B1/3/5/7/8/20/28
LTE-TDD: Band 38/40/41
WCDMA: Band 1/5/8
GSM: 850/900/1800 MHz
Power Transmission CE:
4G: Power class3: 23 dBm ± 2.7 dB
3G: Power class3: 24 dBm + 1/-3 dB
2G: Power class0: 30 dBm ± 2 dB (GSM1800/1900)
Power class5: 33 dBm ± 2 dB (GSM850/900)
Network Protocol HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; SSL; Qos; FTP; UPnP; ICMP; SNMP; IGMP; ARP; RTCP; RTP; PPPoE; RTMP; Bonjour; SMB; NFS
Interoperability ONVIF (Profile S&G&T);CGI;SDK;P2P
Streaming Method Unicast/Multicast
User/Host 20 (total bandwidth: 64 M)
Storage FTP; Micro SD card (support up to 512 GB); NAS
Browser IE 9 and later versions
Chrome 41 and earlier versions
Firefox 50 and earlier versions
iOS 10 and later versions
Management Software DMSS
Mobile Client iOS; Android
Certification
Certifications CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
CE-RED: Radio Equipment Directive 2014/53/EU;
FCC: 47 CFR FCC Part 15; Subpart B
Port
Audio Input 1 channel (built-in mic)
Audio Output 1 channel (built-in speaker)
Alarm Linkage Capture; record; Отправить; preset; audio; warning light
Alarm Event Motion/Tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection; passive infrared detection
Power
Power Supply 5.4 VDC, 3A (Standard solar panel)
Battery Life on a Full Charge Sleep Mode: 7days (at the rate of 1-hour remote live view per day)
Power Consumption Sleep: 35 mW
Static: 2.3 W (daytime,only SD storage) 2.5 W (daytime: pulling stream in 4G), 4.8 W (illuminator on, pulling stream in 4G)
Max.: 10 W (illuminator + PTZ + heater + pulling stream in 4G)
Environment
Operating Temperature 0 °C to +50 °C (32 °F to +122 °F)
Operating Humidity ≤ 95%
Storage Temperature 0 °C to +50 °C (32 °F to +122 °F)
Storage Humidity ≤ 95%
Protection IP66 TVS 2000 V lightning proof; surge protection; voltage transient protection
Structure
Product Dimensions 336 mm × 247 mm × 223 mm (13.23" × 9.72" × 8.78") (L × W × H)
Net Weight 1.40 kg (3.09 lb)
Gross Weight 2.14 kg (4.72 lb)
The precision of the presets for PTZ cameras might vary depending on different series. For scenes with high requirements on the precision, contact your local sales representative for assistance with selecting the model.
Тип корпуса: PT
Разрешение: 4Mп
Класс защиты: IP 66
Опции: Встроенный микрофон, SD карта памяти, 4G, На солнечной батарее, Динамик, с аккумулятором
ИК подсветка: 30 м.
